Intrepid

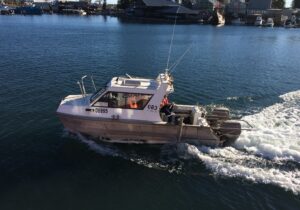

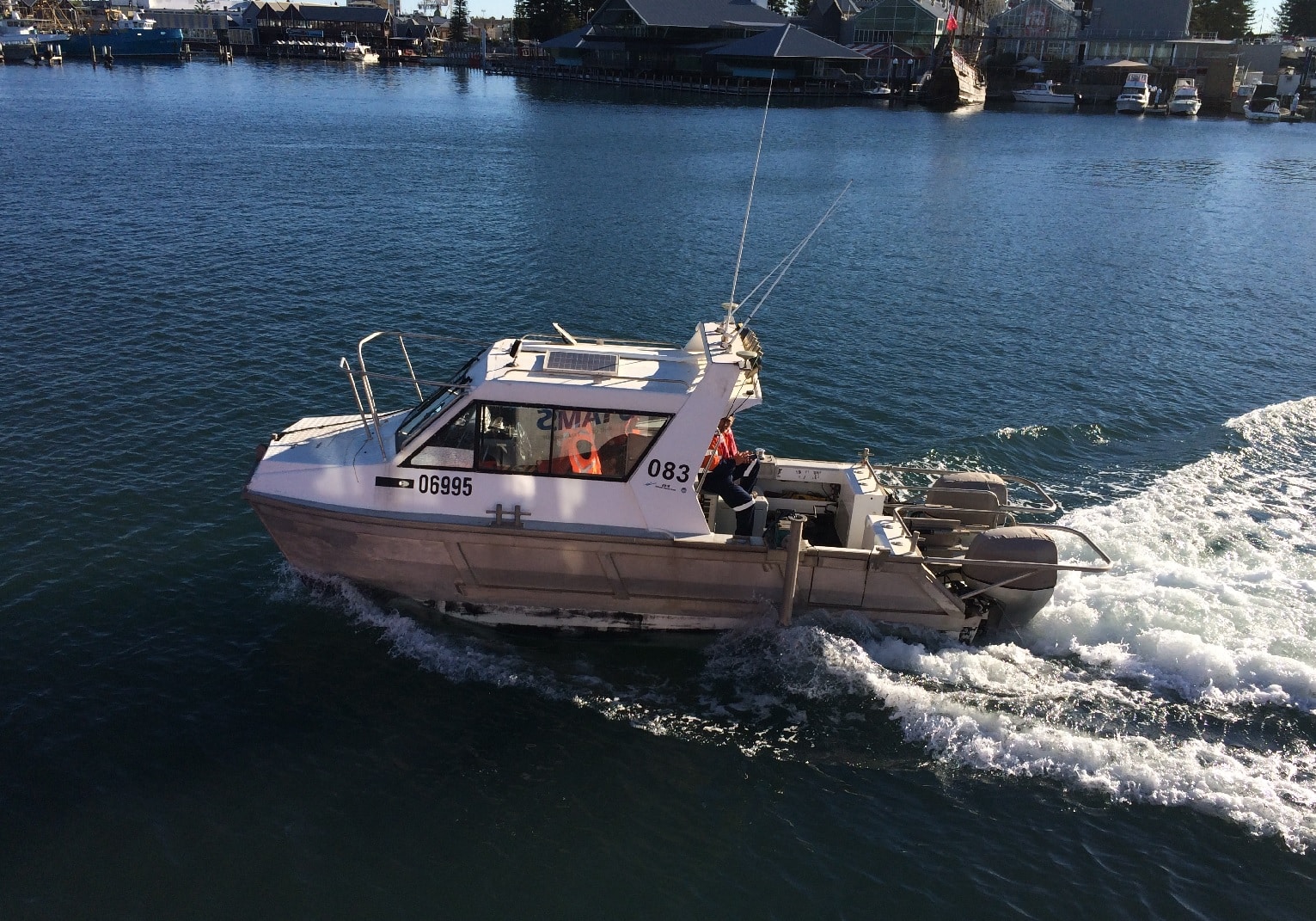

Intrepid is a stable and versatile surveying platform ideal for coastal and inshore areas.
Intrepid’s multi-purpose capabilities include hydrographic, geophysical and drone surveys.
Intrepid can be fitted with a range of Hydrographic and Geophysical survey equipment.
4
crew capacity
7m
length
0.5m
draft
- Name: Intrepid
- UVI: 447072
- Length: 7m
- Hull: Aluminium catamaran
- Engine: 2 x Yamaha 150hp
- Draft: 0.5m

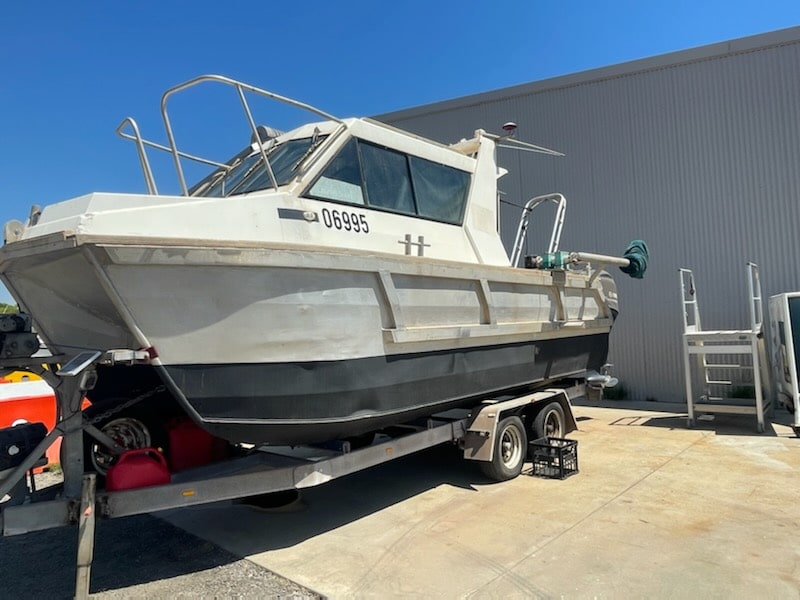

- Trailer: Dual axle, electric/hydraulic brakes, 50mm tow ball
- Crew capacity: 4 (comfortable for 2 persons continuous operations)
- Fuel capacity: 2 x 130L tanks
- Survey Certificate: 2C (non-passenger vessel, offshore to 30nm)
- Navigation Equipment: Plotter/sounder/Autopilot
- Communications: VHF, AIS (MMSI: 503037670)
- Safety Equipment: All safety equipment as required by AMSA regulations for this class of vessel.
- Safe Management System: The vessel operates under a Safety Management System (SMS) developed and maintained to AMSA standards.
Other Features
- Airconditioned cabin.
- Ample room for survey laptops, PC’s and survey electronics within the lockable cab.
- Prop protector cages available. Useful when towed sonar equipment is deployed for concern free operation.
- 2kVA inverter (and spare unit) on 100Ah house battery with solar panel to maintain batteries.
- Capstan winch on SB gunnel.

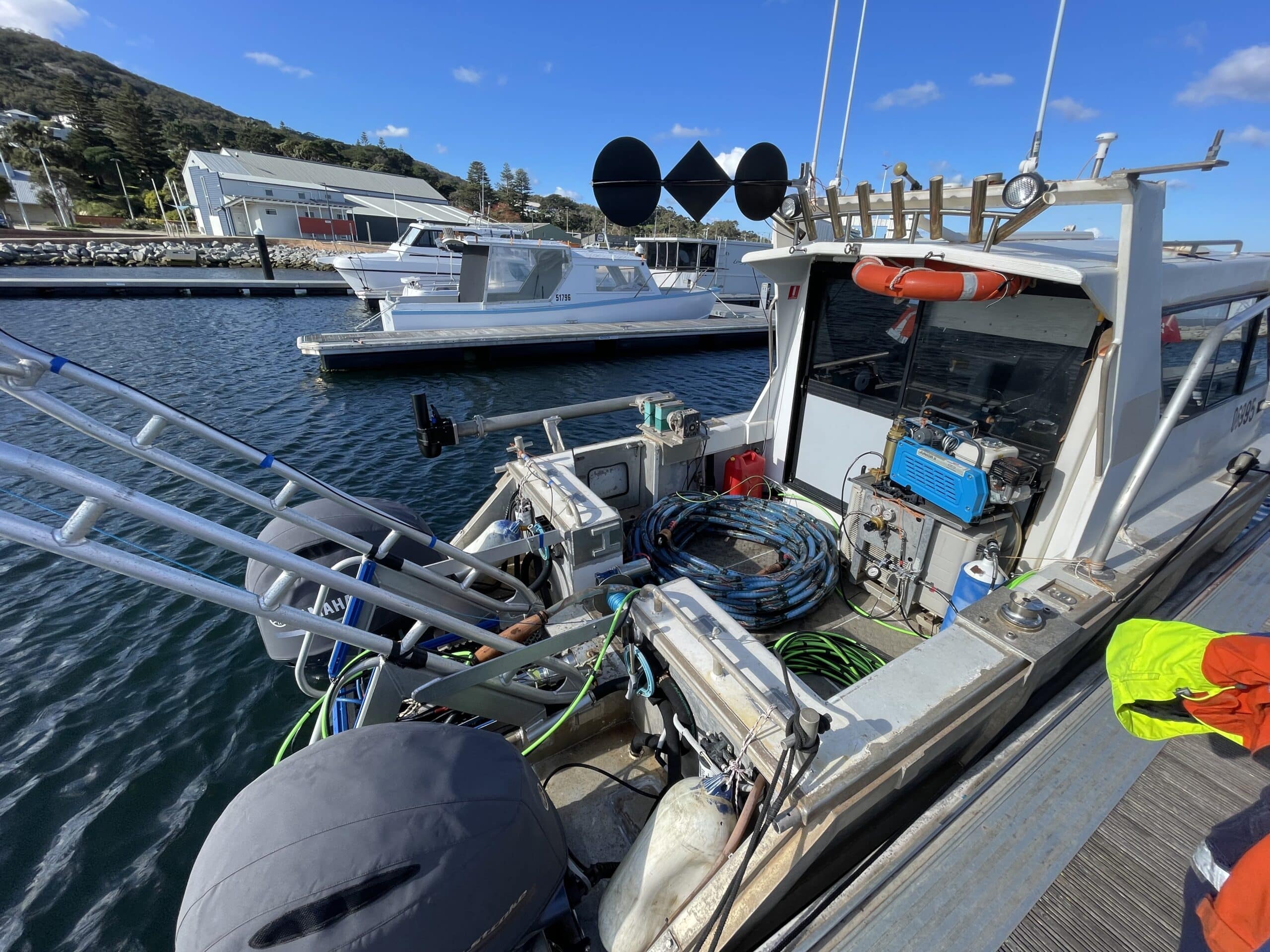

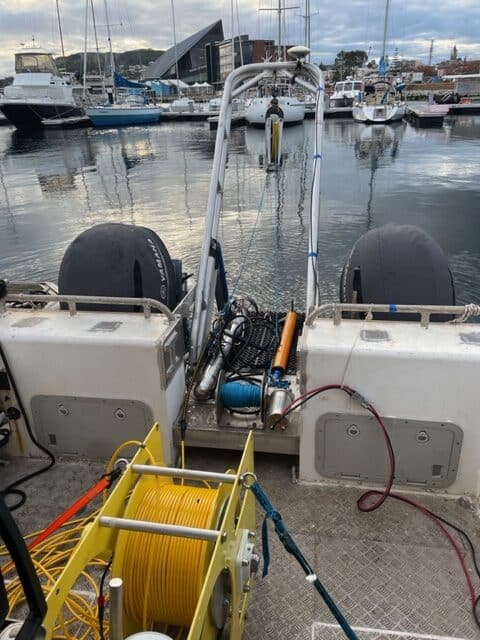

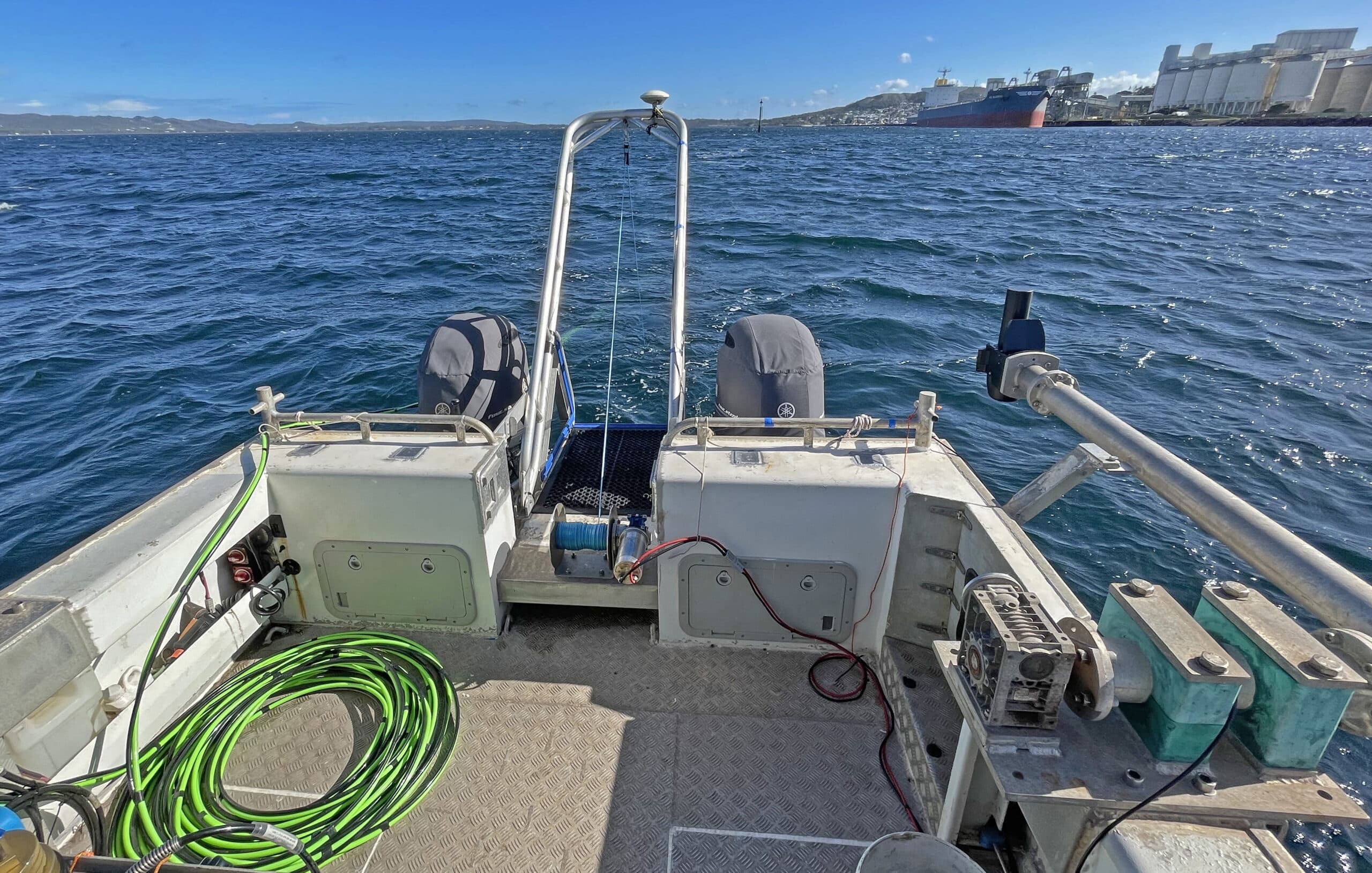

- Walkway between the engines allowing easy deployment of survey equipment off the stern, with A-frame option.
- A ladder is available for dive operations.
